Description

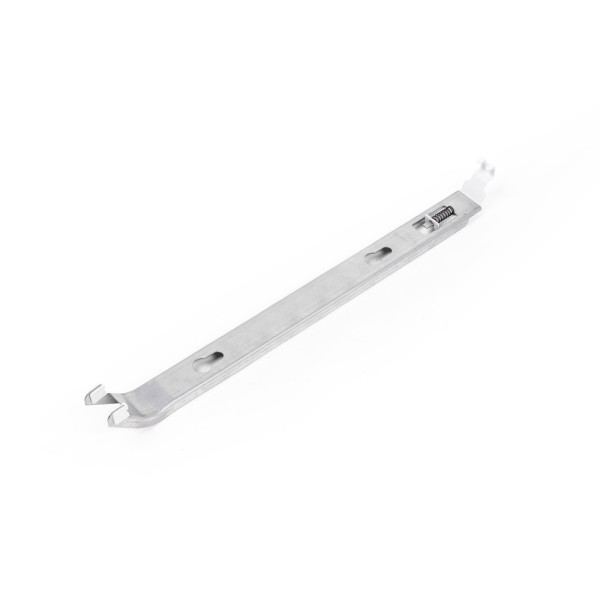

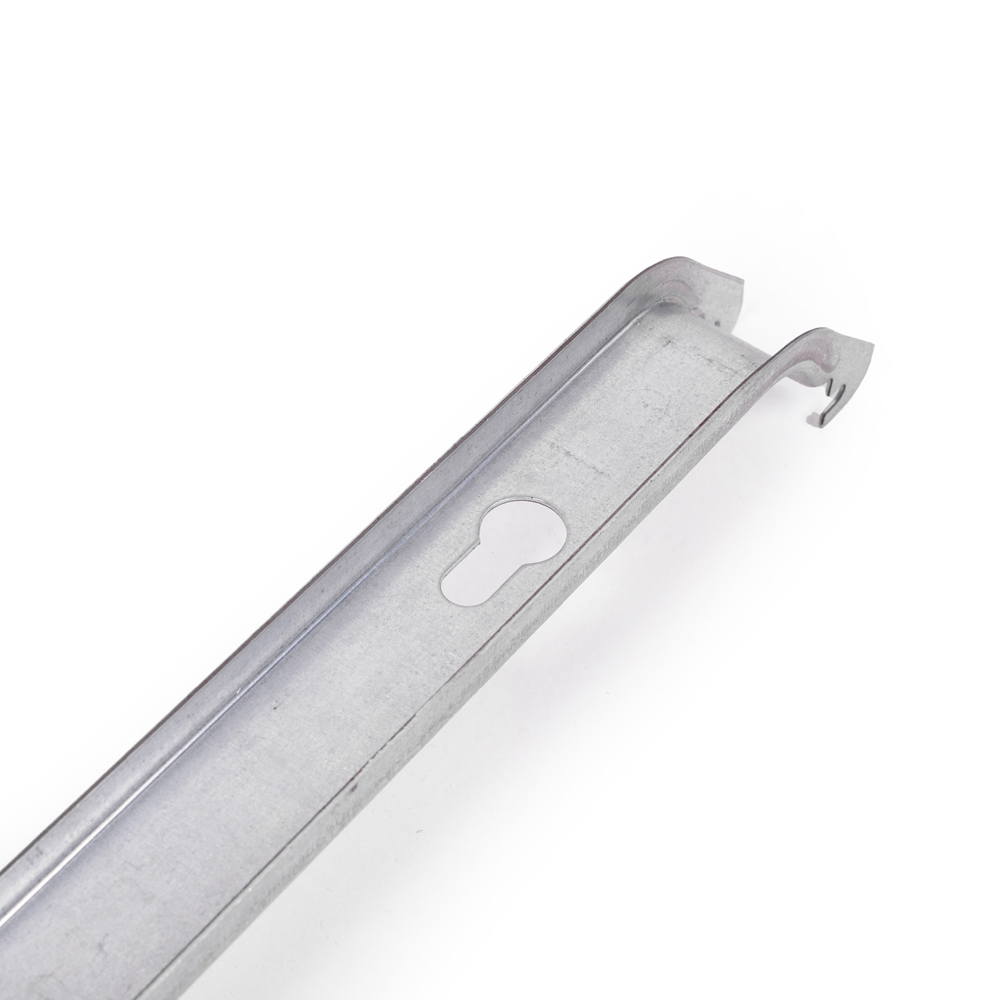

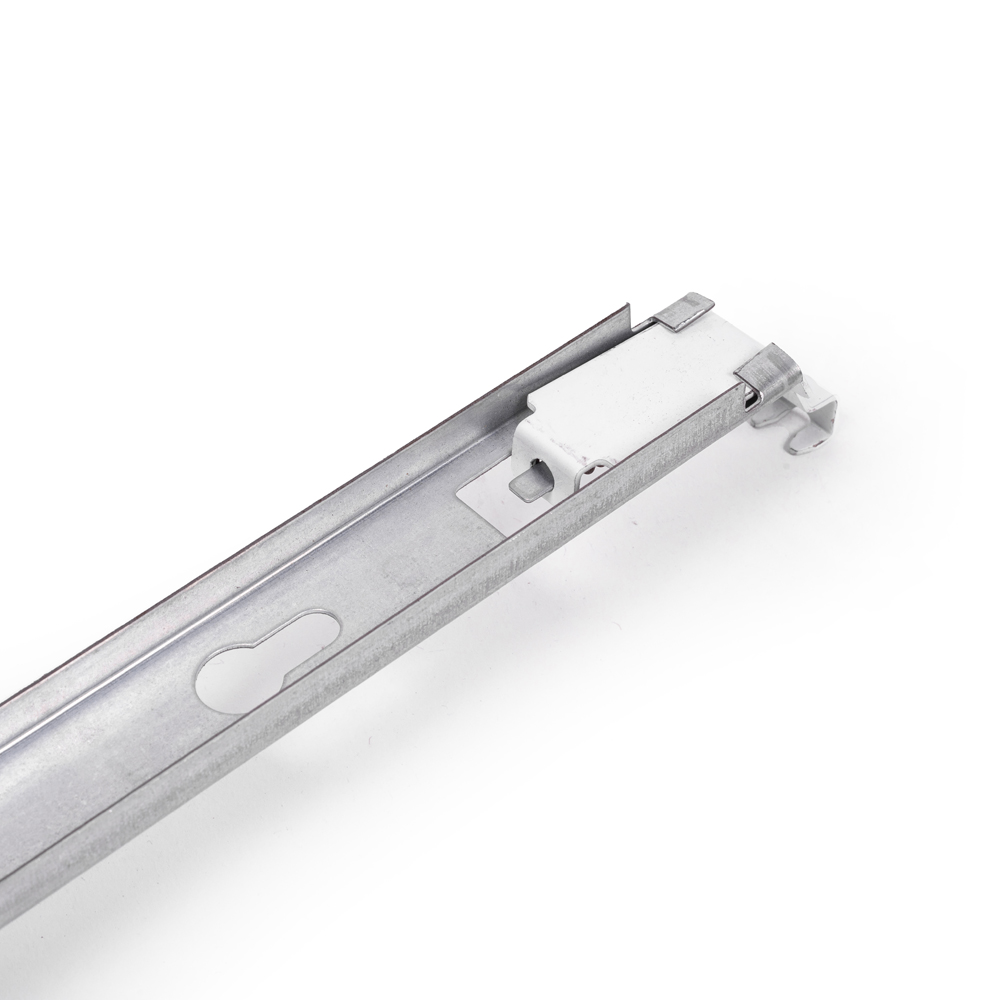

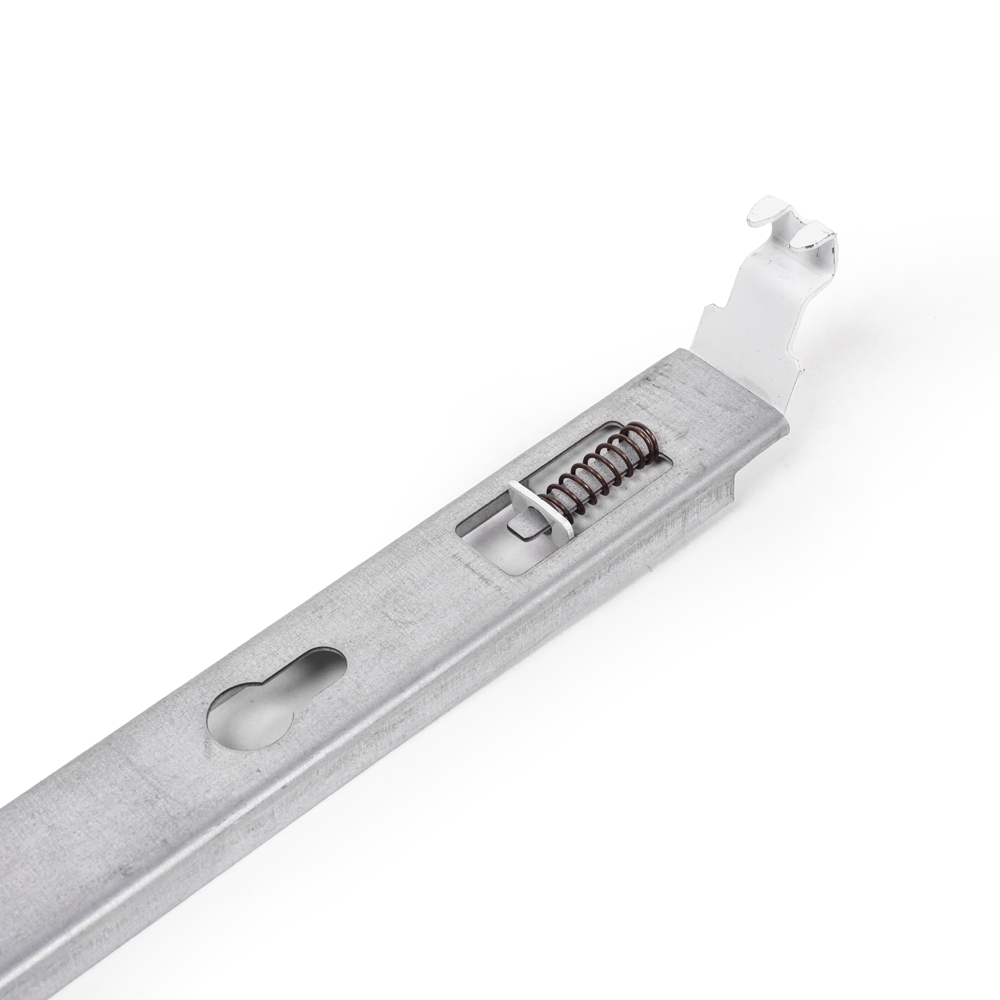

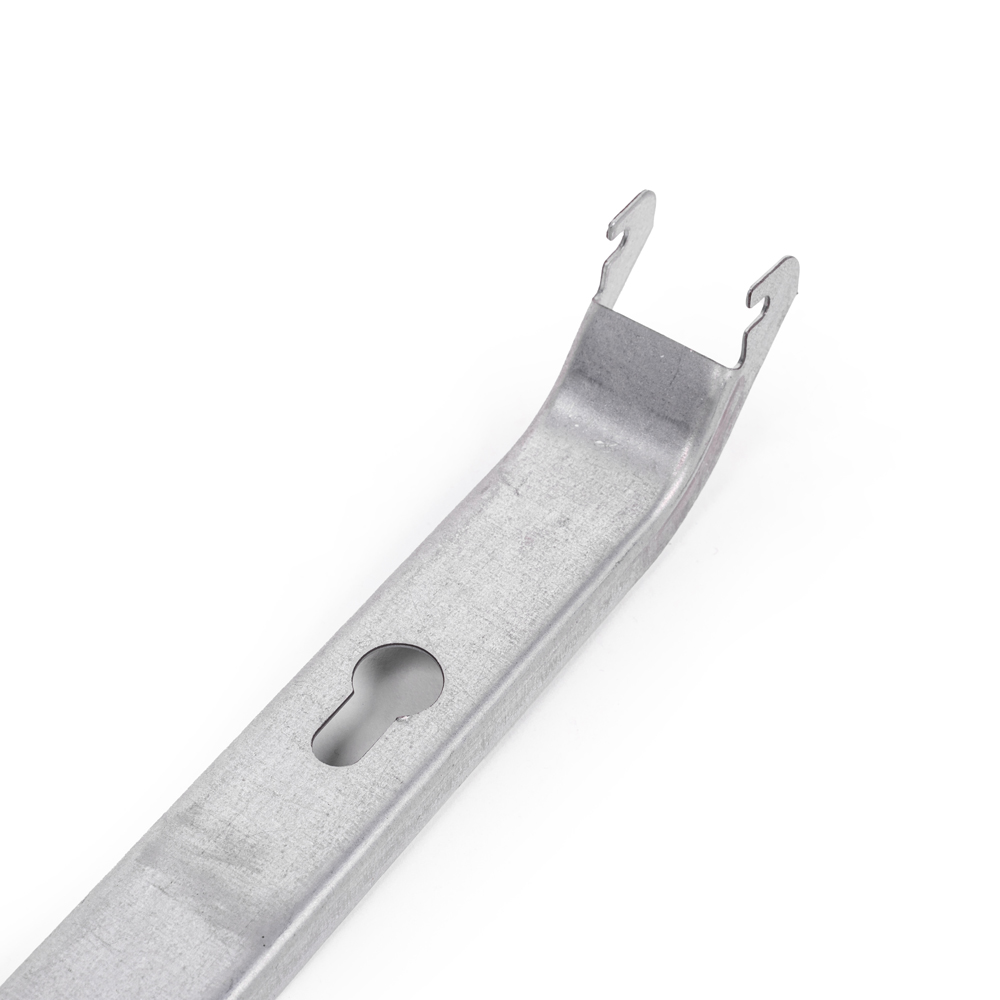

Wall-mount hanger for steel panel radiators LEMAX Premium 300 mm high is used mainly for wall mounting of steel panel radiators without brackets for the so-called multi-purpose radiators. They can be also used for radiators with brackets. Fix to the back panel of the radiator. Suitable for steel panel radiator types 20, 21, 22, 30, and 33 (only if a convection grill is fitted).
2 hangers are required for a radiator up to 1,600 mm long and 3 hangers are required for radiators over 1,700 mm long.
Such hangers are used in places where steel panel radiators are fixed to the wall made of concrete, brick, plasterboard or plywood. It is also possible to mount them on stone and wooden walls.
They are made of 1.5 mm thick galvanized sheet according to GOST 14918-80 with the structural element holding the upper part of the radiator painted white RAL 9016
