Description
Type 33 Compact radiators are high-power models. Their specific characteristics are the following:
- three heating panels;
- three convectors, extra heat-release surfaces.

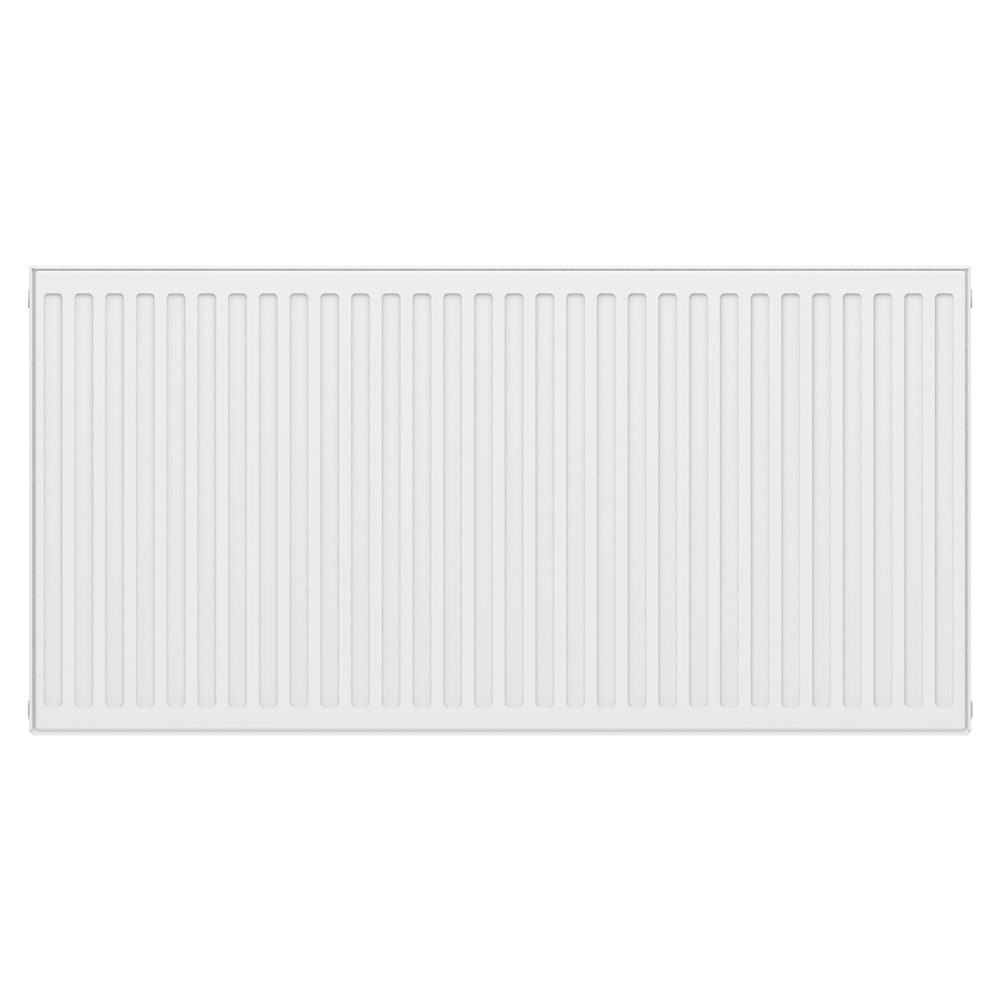

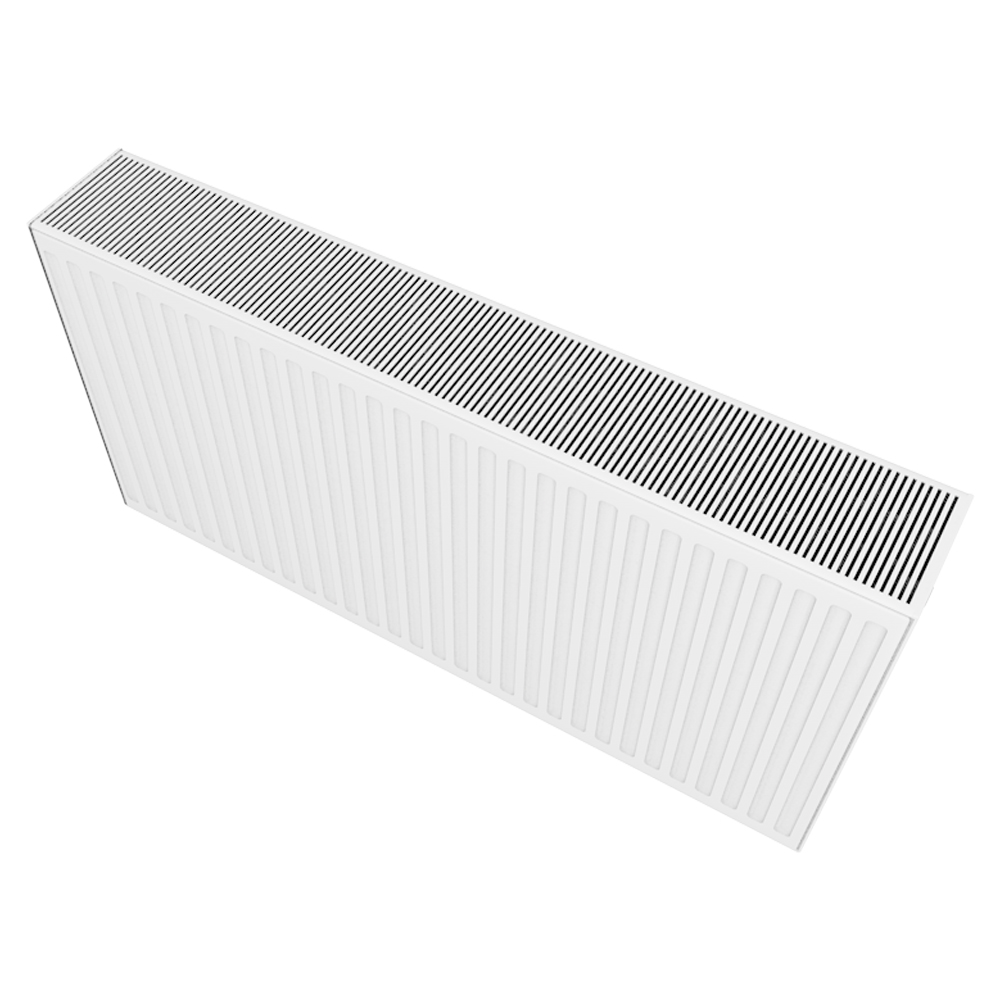

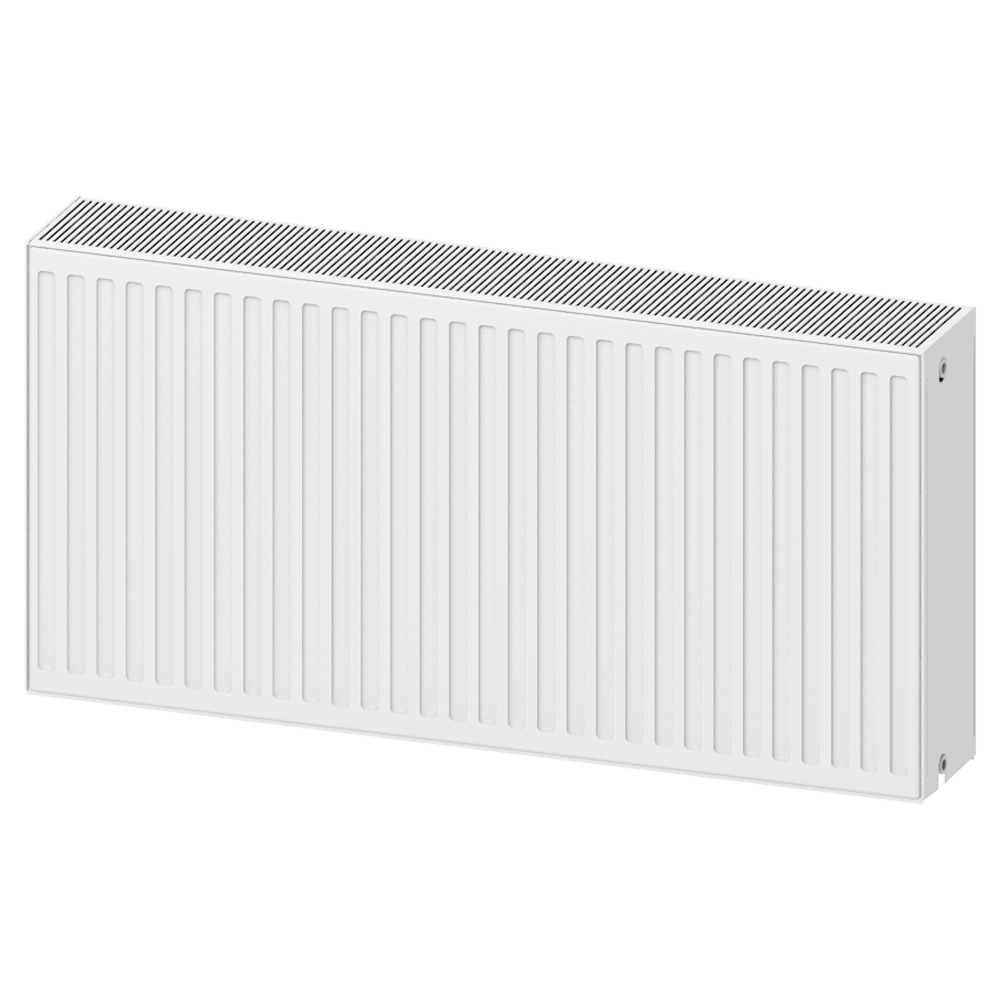

Type 33 Compact Radiator

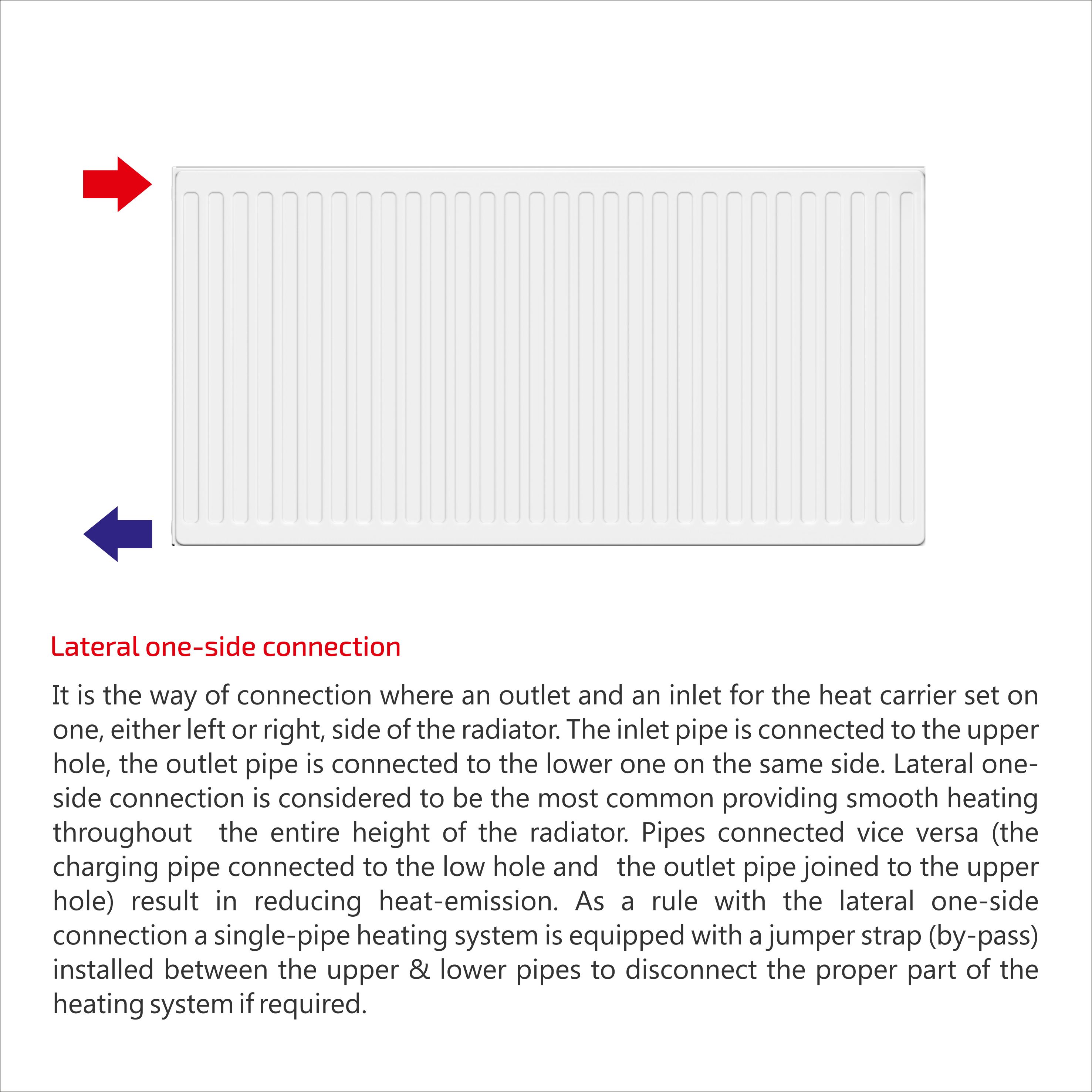

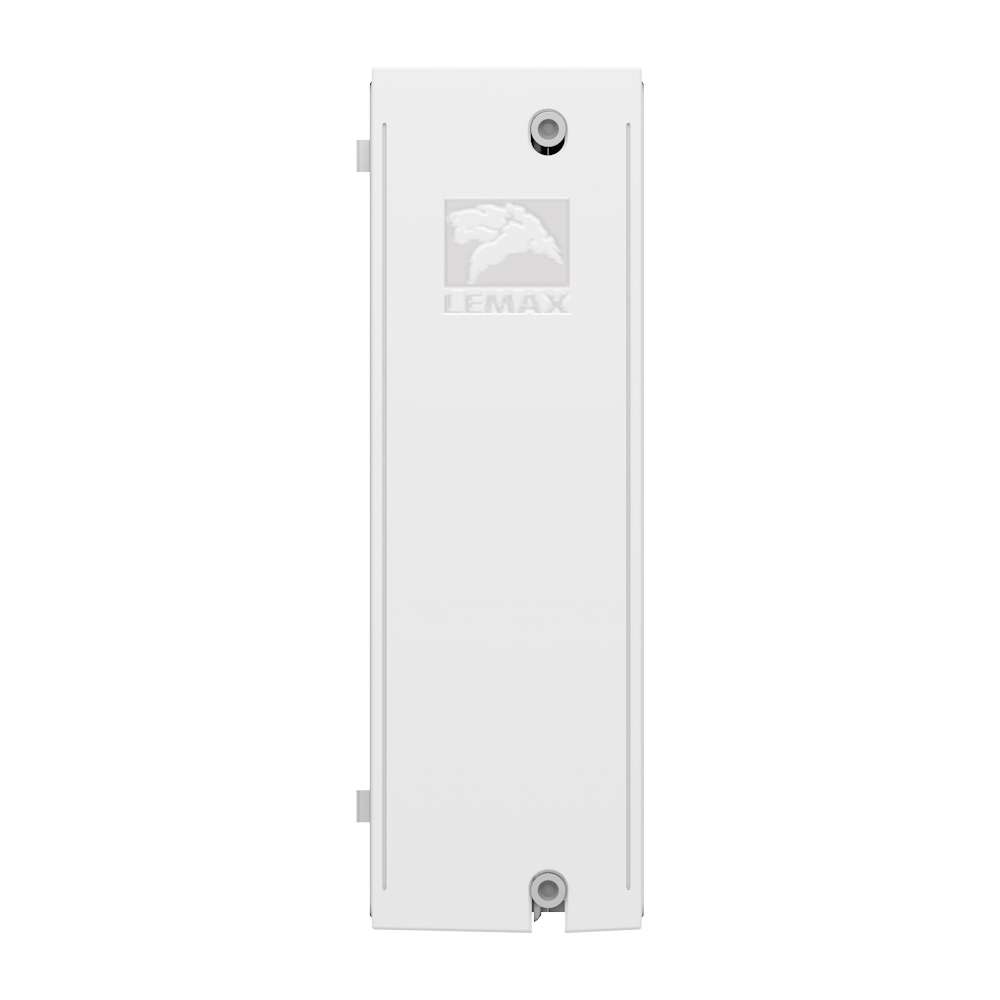

Radiator heating panels are made of 08Ю steel with technology of contact welding using RF current, that results in reliability of welds. The panels warm up the premise and transfer the heat to the convectors strengthening the heating effect and moving warm air into the premise. Side connection increases type 33 radiator efficiency as the natural flow is created inside the panels and heats uniformly the upper and the lower parts.
Usage
Type 33 Compact radiators are recommended for installation in living accommodations, office and public buildings of a large area, as well as premises with the corners to the outside.
Specifications:
- maximum operating pressure 1,0 MPa;
- testing pressure 1,5 MPa;
- maximum heat carrier temperature 120°С.

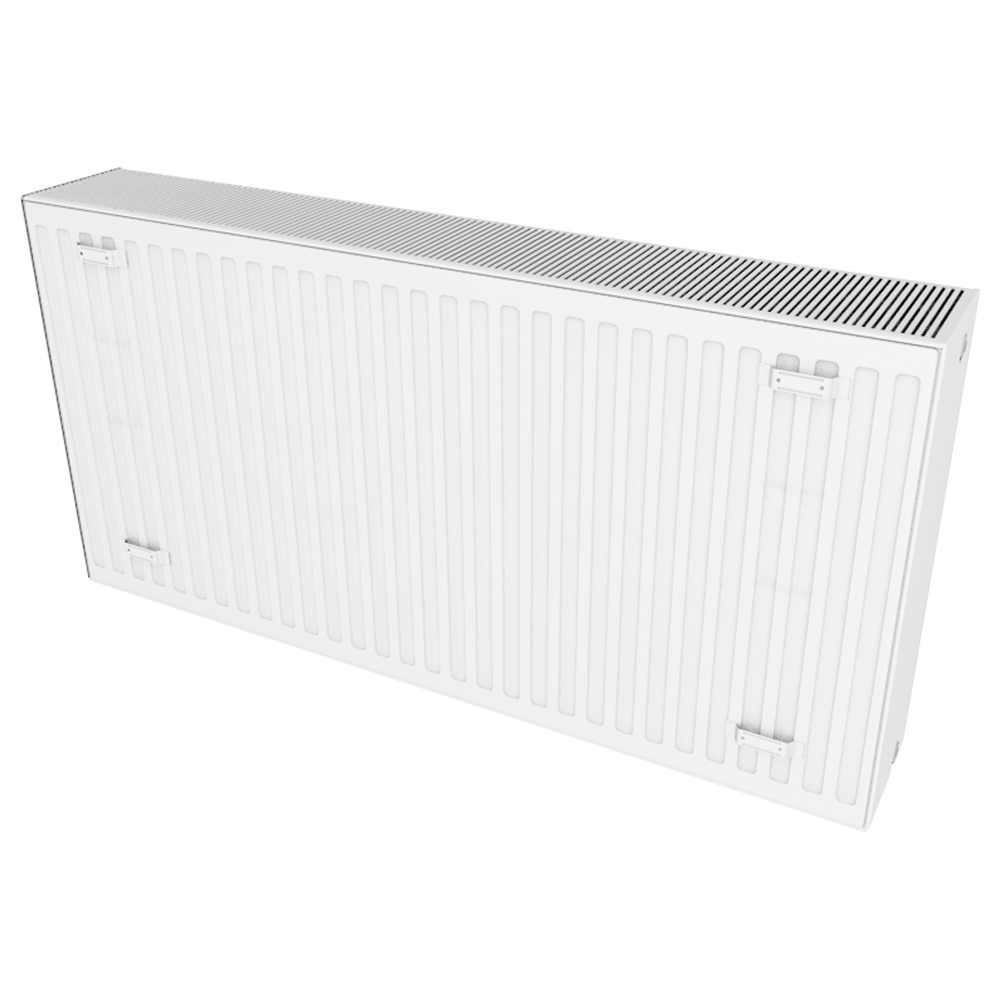

LEMAX Premium size spectrum: height 200, 300, 400, 500, 600 mm, length from 400 to 3000 mm at a pitch of 100 mm. Side-connected radiators are produced with welded Hook / Standart fasteners.
Package Contents
LEMAX Premium type 33 radiators with side connection are produced with the following dimensions and specifications:
- radiator – 1 pc.;
- mounting bracket with clips – 2 pcs. for radiators with a length up to 1700 mm, 3 PCs. for radiators with a length over 1700 mm, radiators with a height of 200 mm high mounting brackets are not included;
- bleed screw;
- blind plug- 2 pcs.;
- mounting brackets – 4 pcs. (dowel-screw) for radiators with a length up to 1700 mm, 6 PCs. (dowel-screw) for radiators with a length over 1700 mm;
- pack (plastic corners and flashings, two layers of heat-shrink film);
- a product certificate.
Manufacturer's warranty is 10 years.
